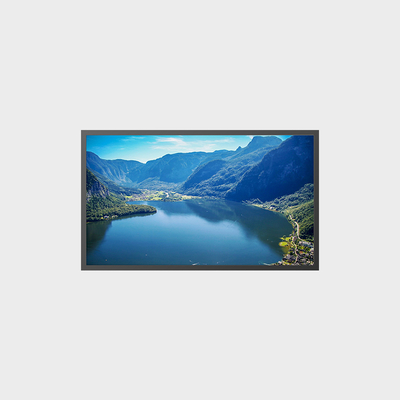

24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100

  • 24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100
Luogo di origine Shenzhen
Marca ROGIN
Numero di modello LCMA-RX0240GA01-C100
Quantità di ordine minimo 5
Prezzo Price is negotiable.
Imballaggi particolari Cartoni o casse di legno
Tempi di consegna 4-6 settimane
Termini di pagamento T/t, l/c
Capacità di alimentazione Adeguatezza sul posto

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Dimensione del pannello 24" Risoluzione 1920*1080
Luminosità 1000 (Tipico) Proporzioni 16: 9
Area attiva 531.36*298.89mm Dimensione del contorno 556*323.2*17 mm
Evidenziare

24 inch LCD display with LVDS interface

,

high brightness LCD display customization

,

LCMA-RX0240GA01-C100 LCD module
Lasciate un messaggio
Descrizione di prodotto
24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100
Product Specifications
Attribute Value
Panel Size 24"
Resolution 1920*1080
Brightness 1000 (Typ.)
Aspect Ratio 16:9
Active Area 531.36*298.89mm
Outline Dimension 556*323.2*17mm
Product Features
  • Brightness customization 700-5000cd/m²
  • Outdoor sunlight readable
  • Low power consumption
  • High uniformity up to 85%
  • Aluminium backlight structure with good heat dissipation
  • Wide temperature range up to -30°C-80°C
  • High shock resistance and stability
Applications
  • Bus Stop Station
  • Intelligent Charging Pile
  • Outdoor Electronic News Reading Board
  • Intelligent Express Cabinet
  • Vending Machine
  • Commercial Advertising
  • Attractions Information Inquiry Machine
  • Community Information Board
24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100 0 24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100 1 24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100 2 24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100 3
Technical Specifications
Brand Rogin
Series High Brightness LCD Display
Panel Size (inch) 24
Model LCMA-RX0240GA01-C100
Brightness 1000
Resolution 1920*1080
Active Area 531.36*298.89
Overall Size 556*323.2*17
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 5000:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature -20~70℃
