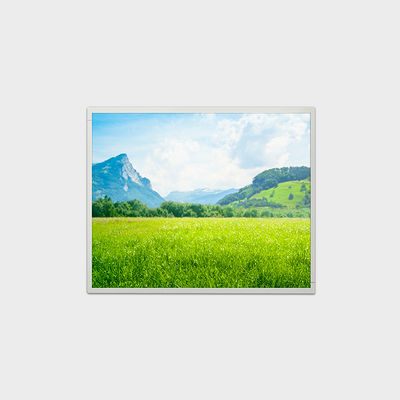

19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion

  • 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion
Luogo di origine Shenzhen
Marca ROGIN
Numero di modello LCMA-RX0190GB01-C050
Quantità di ordine minimo 5
Prezzo Price is negotiable.
Imballaggi particolari Cartoni o custodie in legno
Tempi di consegna 6-8 settimane
Termini di pagamento T/t, l/c
Capacità di alimentazione Adeguatezza a punto

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Display LCD TFT Dimensione del pannello 19 "
Risoluzione 1280*1024 Luminosità 500 (tip.)
Temp operativa. 0 ~ 50 ℃ Area attiva 374.784*299.82mm
Dimensione del contorno 396*324*10,4 mm
Evidenziare

19 inch TFT LCD display

,

LVDS interface TFT display

,

1280x1024 resolution LCD screen
Lasciate un messaggio
Descrizione di prodotto
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Solution
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Solution
Product Advantage
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Application
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 0 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 1 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 2 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 3
Specifications
LCMA-RX0190GB01-C050
Brand Rogin
Series TFT LCD Display
Panel Size 19 inch
Model LCMA-RX0190GB01-C050
Brightness 500
Resolution 1280*1024
Active Area 374.784*299.82mm
Overall Size 396*324*10.4mm
Viewing Angle 85/85/80/80
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 1000:1
Touch Panel Without
Operating Temperature 0-50 ℃
