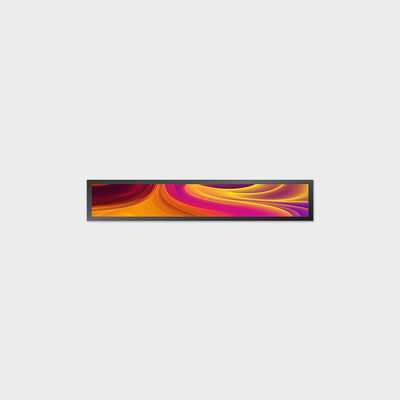

36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion

  • 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion
Luogo di origine Shenzhen
Marca ROGIN
Numero di modello LCMA-RX0366TA02-C100
Quantità di ordine minimo 5
Prezzo Price is negotiable.
Imballaggi particolari Cartoni o custodie in legno
Tempi di consegna 6-8 settimane
Termini di pagamento T/t, l/c
Capacità di alimentazione Adeguatezza a punto

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Display LCD TFT a barra Dimensione del pannello 36.6"
Risoluzione 1920*290 Luminosità 1000 (tip.)
Temp operativa. -20 ~ 60 ℃ Area attiva 919.296*138.85mm
Dimensione del contorno 960*174,35*16,9 mm
Evidenziare

36.6 inch bar type LCD display

,

high brightness bar type display

,

1920x290 resolution bar display
Lasciate un messaggio
Descrizione di prodotto
36.6 inch Bar Type Display With 1920*290 Resolution With High Brightness Integrated Solution
36.6 inch Bar Type Display With 1920*290 Resolution With High Brightness Integrated Solution
Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 0 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 1 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 2 36.6 inch Bar Type Display With 1920*290 Resolution Wtih High Brightness Integrated Soltuion 3
Specifications
Model: LCMA-RX0366TA02-C100
Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 36.6 inch
Model LCMA-RX0366TA02-C100
Brightness 1000nits
Resolution 1920*290
Active Area 919.296*138.85mm
Overall Size 960*174.35*16.9mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 4000:1
Touch Panel Without
Operating Temperature -20-60 ℃
