13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options

  • 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Luogo di origine Shenzhen
Marca ROGIN
Numero di modello LCMA-RX0138TQ01-C070
Quantità di ordine minimo 5
Prezzo Price is negotiable.
Imballaggi particolari Cartoni o custodie in legno
Tempi di consegna 6-8 settimane
Termini di pagamento T/t, l/c
Capacità di alimentazione Adeguatezza a punto

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Display LCD TFT a barra Dimensione del pannello 13.8"
Risoluzione 1920*358 Luminosità 700 (Tipico)
Temp operativa. 0 ~ 50 ℃ Area attiva 344.16*61.17 mm
Dimensione del contorno 371.5*90.1*12.7mm
Evidenziare

13.8 inch bar type LCD display

,

smart home touch panel display

,

bar type cutting display panel
Lasciate un messaggio
Descrizione di prodotto

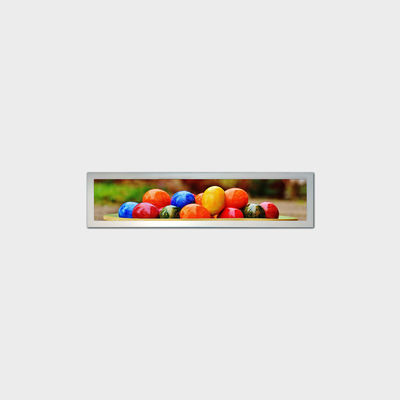

13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 0 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 1 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 2 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 3
Specifications
LCMA-RX0138TQ01-C070
Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 13.8 inch
Model LCMA-RX0138TQ01-C070
Brightness 700nits
Resolution 1920*358
Active Area 344.16*61.17mm
Overall Size 371.5*90.1*12.7mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 3000:1
Touch Panel Without
Operating Temperature 0-50 ℃
