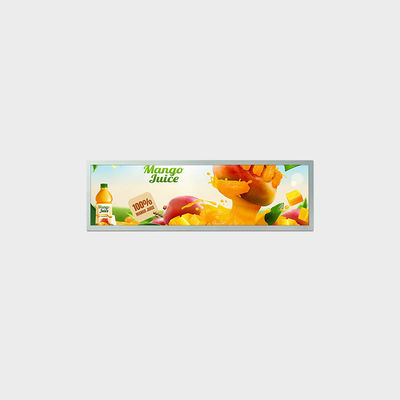

15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application

  • 15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application
Luogo di origine Shenzhen
Marca ROGIN
Numero di modello LCMA-RX0153TB02-C070
Quantità di ordine minimo 5
Prezzo Price is negotiable.
Imballaggi particolari Cartoni o custodie in legno
Tempi di consegna 6-8 settimane
Termini di pagamento T/t, l/c
Capacità di alimentazione Adeguatezza a punto

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Esposizione LCD di Antivari Dimensione del pannello 15.3
Risoluzione 1280*342 Luminosità 700 (Tipico)
Temp operativa. 0 ~ 50 ℃ Area attiva 374.78*100.14 mm
Dimensione del contorno 396*124*13 mm
Evidenziare

15.3 inch bar type LCD display

,

bar type display with LVDS support

,

market label application LCD display
Lasciate un messaggio
Descrizione di prodotto
15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application
Product Advantage
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Application
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application 0 15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application 1 15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application 2 15.3 Inch Cutting Bar Type Display 1280*342 Resolution With LVDS Support Market Label Application 3
Specifications
LCMA-RX0153TB02-C070
Brand Rogin
Series Bar Type LCD Display
Panel Size 15.3 inch
Model LCMA-RX0153TB02-C070
Brightness 700
Resolution 1280*342
Active Area 374.78*100.14mm
Overall Size 396*124*13mm
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 1000:1
Touch Panel Without
Operating Temperature 0~50 ℃
