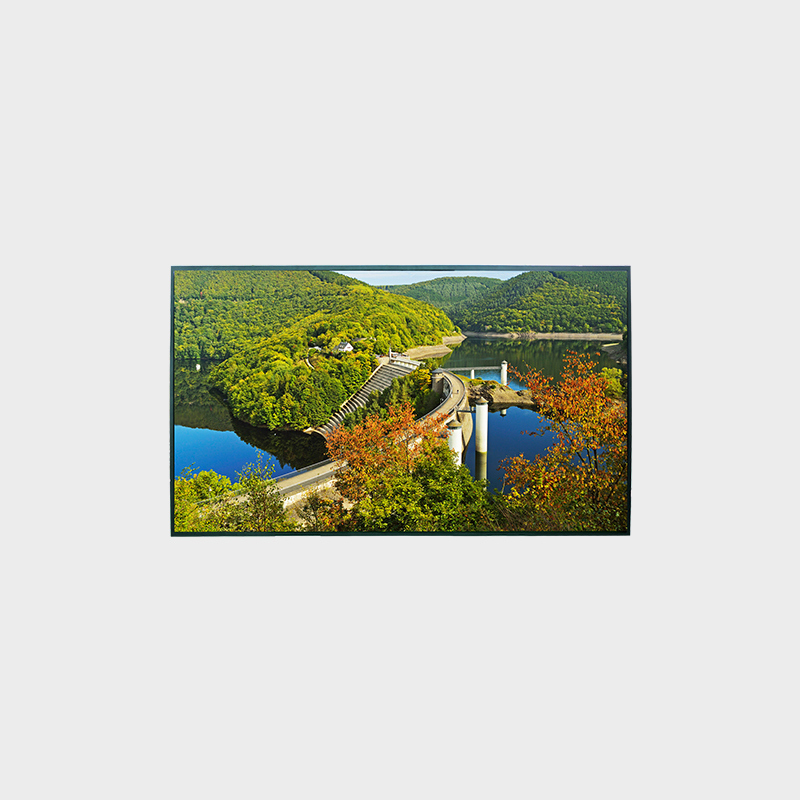

75-Inch High-Lumen Industrial Grade LCD Display
Contattimi gratis campioni e buoni.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Dimensione del pannello | 75" | Risoluzione | 3840*2160 |
|---|---|---|---|
| Luminosità | 4000 (tip.) | Temperatura operativa | 0 ~ 50 ℃ |
| Area attiva | 1649,66*927,936 millimetri | Dimensione del contorno | 1682,6*967,84*41mm |
| Nome | Esposizione LCD di alta luminosità | ||
| Evidenziare | 75-inch high brightness LCD display,industrial grade LCD screen,high-lumen LCD display |
||
Descrizione di prodotto
75-Inch High-Lumen Industrial Grade LCD Display
Product Advantages
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0750GL03-Z400
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size | 75 inch |
| Model | LCMA-RX0750GL03-Z400 |
| Brightness | 4000 |
| Power Consumption | TBD |
| Resolution | 3840*2160 |
| Active Area | 1649.66*927.936 mm |
| Overall Size | 1682.6*967.84*41 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | V-by-One 8 lane |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | 0~50℃ |
