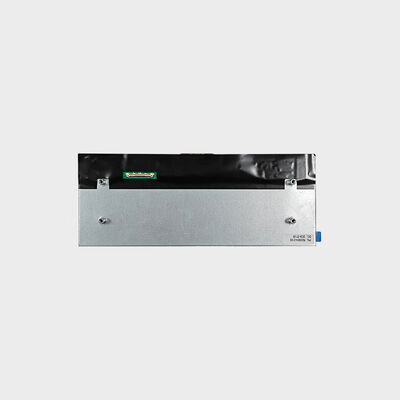

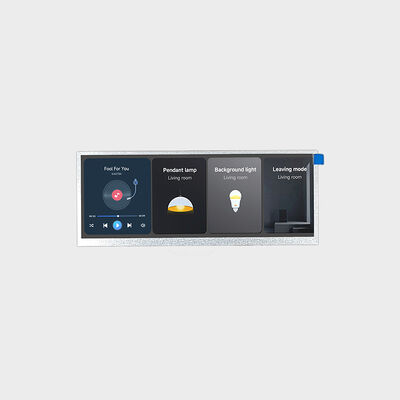

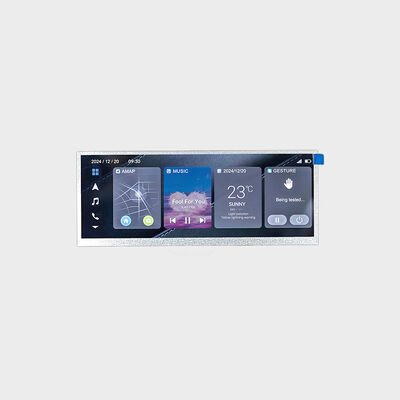

9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface

  • 9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface
  • 9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface
  • 9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface
Luogo di origine SHENZHEN
Marca ROGIN
Numero di modello LCMA-RX090H-0100
Quantità di ordine minimo 5
Prezzo Price is negotiable.
Imballaggi particolari Cartoni o custodie in legno
Tempi di consegna 6-8 settimane
Termini di pagamento T/T, L/C
Capacità di alimentazione Adeguatezza a punto
Dettagli
Dimensioni del pannello 9" Risoluzione 1280*448
Luminosità 500 (tip.) Zona attiva 216.96*76mm
Dimensione del contorno 228*90*13 mm Nome Tipo esposizione di Antivari di LCD
Evidenziare

9 inch bar-type LCD display

,

TFT LCD for smart home

,

appliance control interface display
Lasciate un messaggio
Descrizione di prodotto
9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface
This 9-inch bar-type TFT LCD display is specifically designed for smart home appliance control interfaces, offering high reliability and customizable brightness options.
Product Advantages
  • Three cutting machines with two advanced cutting production lines, capable of cutting up to 1.7 meters (75 inches)
  • Advanced cutting technology ensures high yield and precision manufacturing
  • High reliability with features matching original panel specifications
  • Enhanced anti-vibration performance
  • Customizable brightness ranging from 500 to 2500 nits
  • Long lifespan of 50,000 hours typical, up to 80,000 hours maximum
Product Applications
  • Commercial signage: Advertising displays and price shelves
  • Public transportation: Bus, metro, and light rail billboards
  • Guidance boards and lift advertising displays
  • Financial services: Bank call notice boards
  • Name card displays
  • Taxi advertising boards
9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface 0 9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface 1 9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface 2 9 Inch Bar-Type TFT LCD Display for Smart Home Appliance Control Interface 3
Technical Specifications
Model LCMA-RX090H-0100
Brand Rogin
Series Bar Type LCD Display
Panel Size 9.0 inches
Brightness 500 nits (Support Customized)
Power Consumption 2.52W
Resolution 1280 × 448
Active Area 216.96 × 76 mm
Overall Size 228 × 90 × 13 mm
Viewing Angle 85/85/85/85
Interface Definition LVDS (1 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 1000:1
Aspect Ratio 20:7
Touch Panel Without
Operating Temperature -10°C to 50°C
Download Product Catalog (PDF)
